Industrial extraction & processing equipment
Automated extraction and processing systems, engineered and built in Michigan.
MACH Technologies designs, fabricates, assembles and tests turnkey botanical and biomass processing equipment — PLC-controlled, Class I Division 1/2 compliant, and supported for the life of the system.
- Single HMI · recipe-driven PLC
GMP & EU GMP · complete lab design
Building a facility and not sure where to start?
Bring us the room and the output target. MACH’s engineering team specifies the equipment, designs the process flow, works through room classification and the compliance documentation, then builds and installs the systems that go in it.
Talk to our engineering team-
GMP & EU GMP
Systems engineered for GMP and EU GMP environments, with the documentation package that has to accompany them.
-
Complete lab design & buildout
Process flow, room classification, utilities and equipment specified as one engineered package rather than assembled from parts.
-
Equipment selection
No equipment list yet? Our engineers specify the line around your throughput target, solvent and room classification.
Built to code, and documented
Designed, fabricated, assembled and tested in our vertically integrated Michigan facility. Systems engineered for Class I Division 1 and Division 2 environments.
Equipment categories
Five system families, one engineering team
Stand-alone units or complete integrated lines. Every system is specified around your throughput target, your solvent, and the classification of the room it will stand in.
-

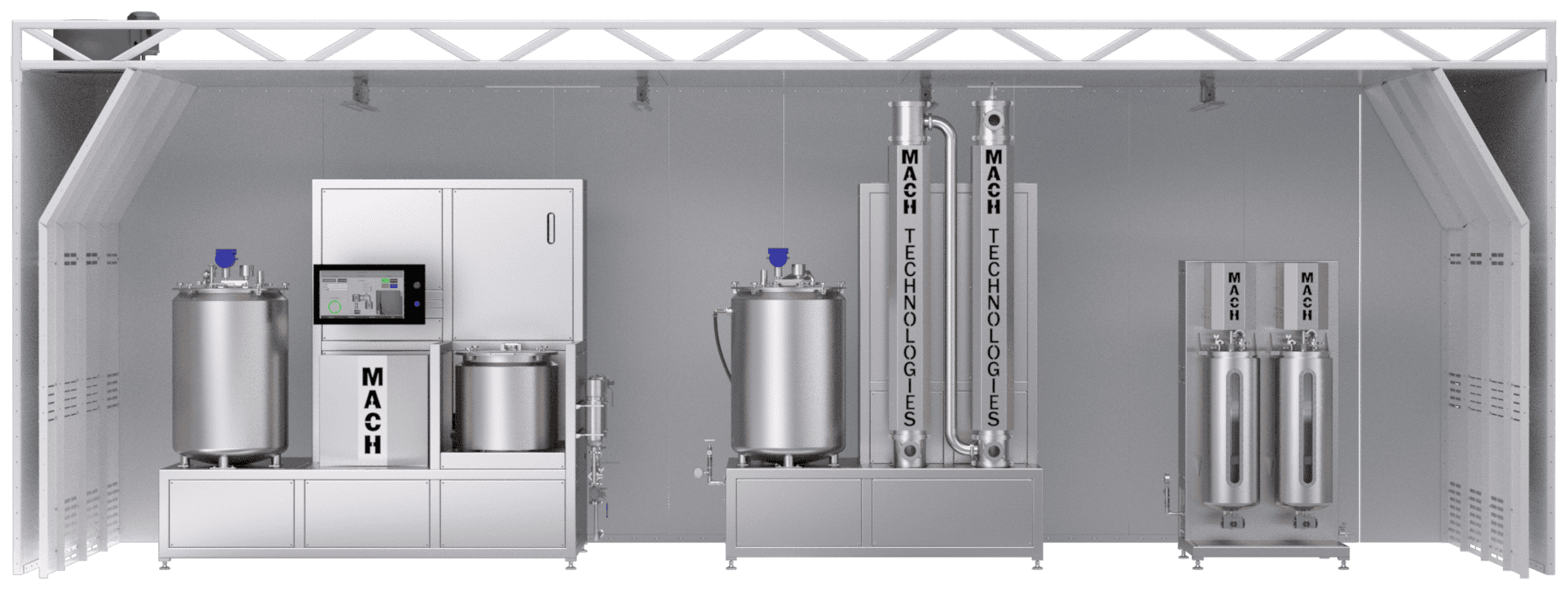

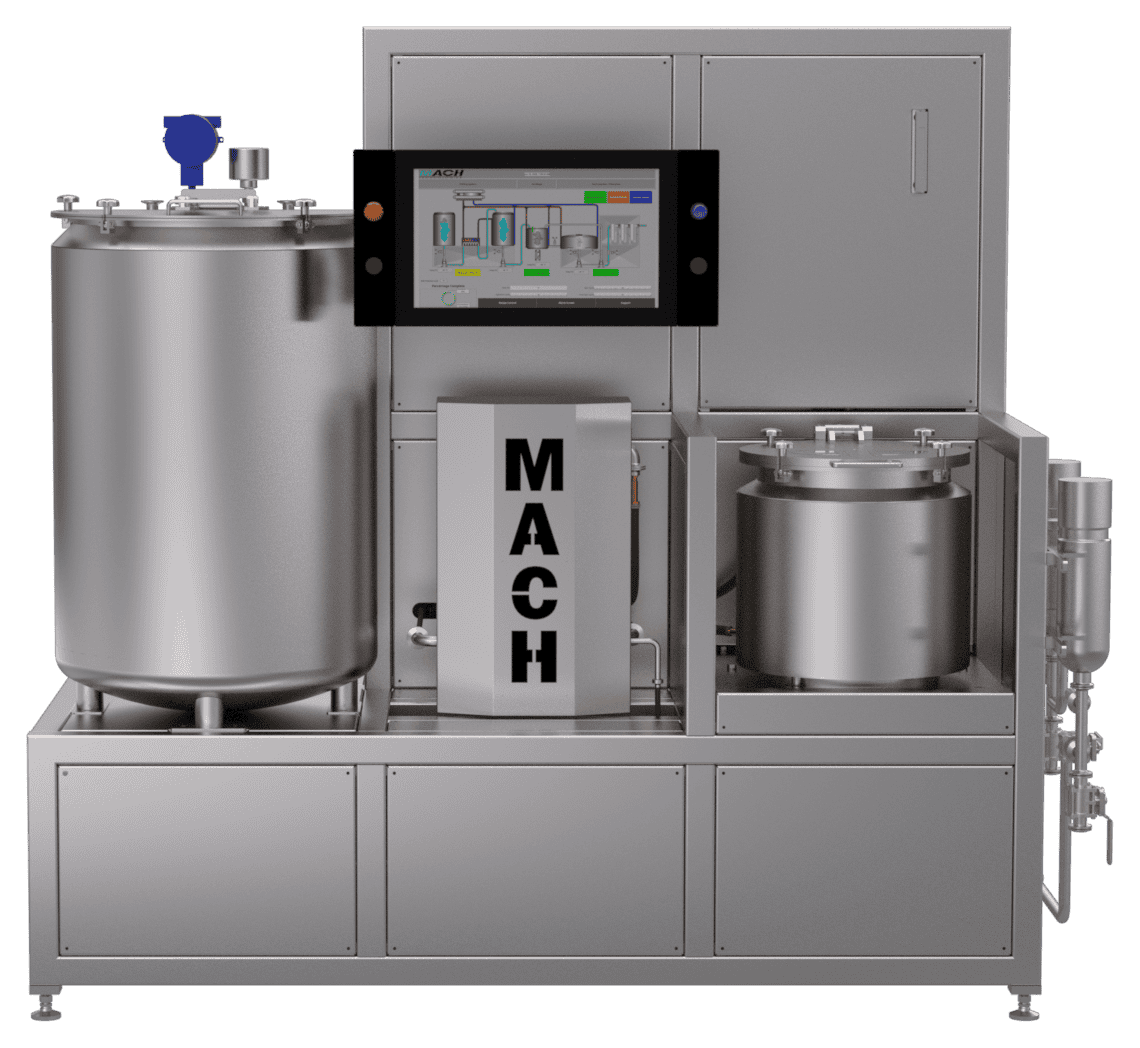

EES Series
Automated ethanol extraction
A complete cold-ethanol line — chilling, extraction, recirculation, particle filtration, solvent recovery with automated discharge, and decarboxylation — under one recipe-driven control system.
- EES-X-240 to EES-X-3600
- 10–20 min batch cycle
- Single operator interface
-

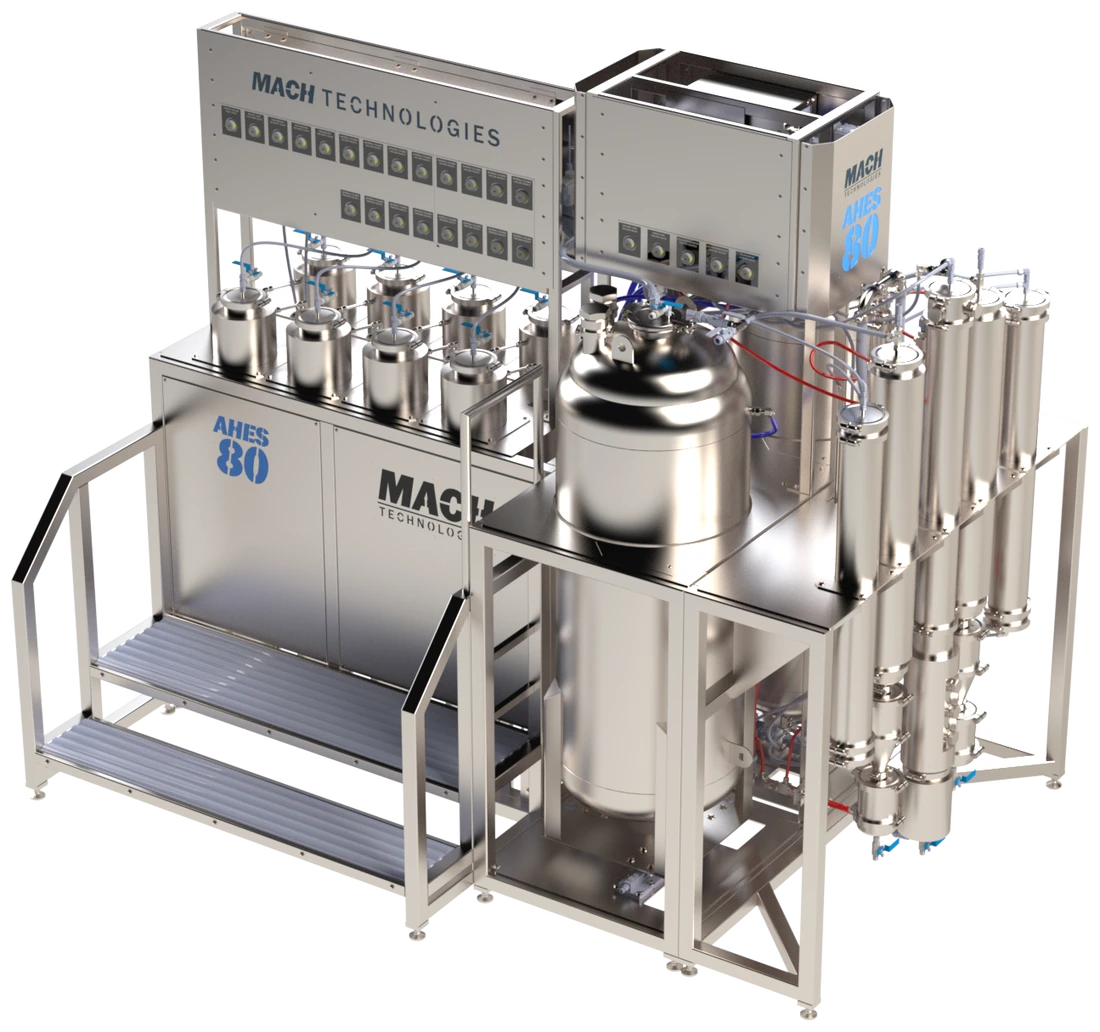

AHES / MHES Series
Hydrocarbon extraction
Closed-loop butane and propane systems with precise temperature and pressure control and integrated safety interlocks. Fully automated (AHES) or operator-driven (MHES), on the same mechanical platform.
- AHES-5 · AHES-40 · AHES-80 · AHES-120
- 5–120 lb per batch
- Class I Division 1 design
-

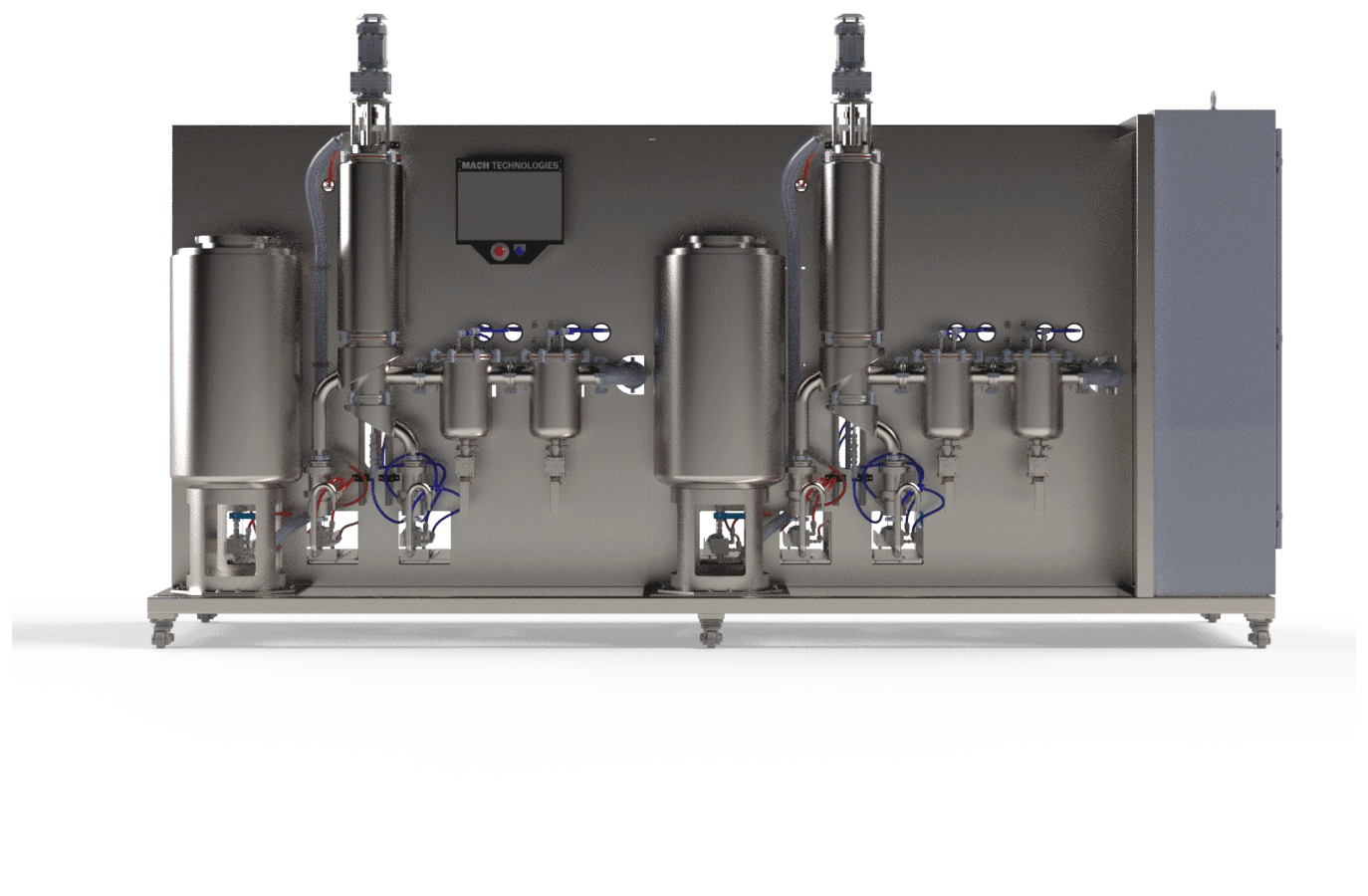

WFDS Series
Wiped-film distillation
Single- and dual-stage wiped-film distillation with vacuum protection, precision gear pumps and touchscreen control. Dual cold traps protect vacuum depth; the quick-lift evaporator keeps cleaning off the critical path.
- WFDS-1S · WFDS-2S
- 0.15–0.60 m² surface area
- Remote diagnostics module
-

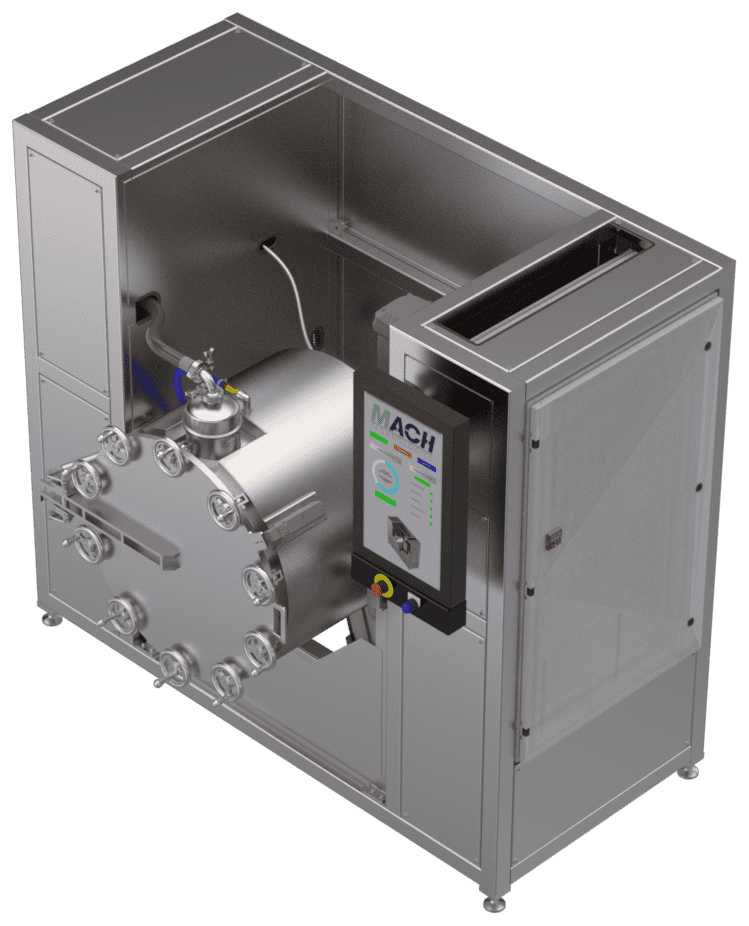

TES Series
Thermal extraction
Stainless-steel thermal extraction with precision temperature control and a full touchscreen interface. Non-rated equipment, so the room it stands in needs no special environmental classification.
- TES-5 · TES-20
- Up to 20 lb · 2–6 hr cycle
- Non-rated equipment
-

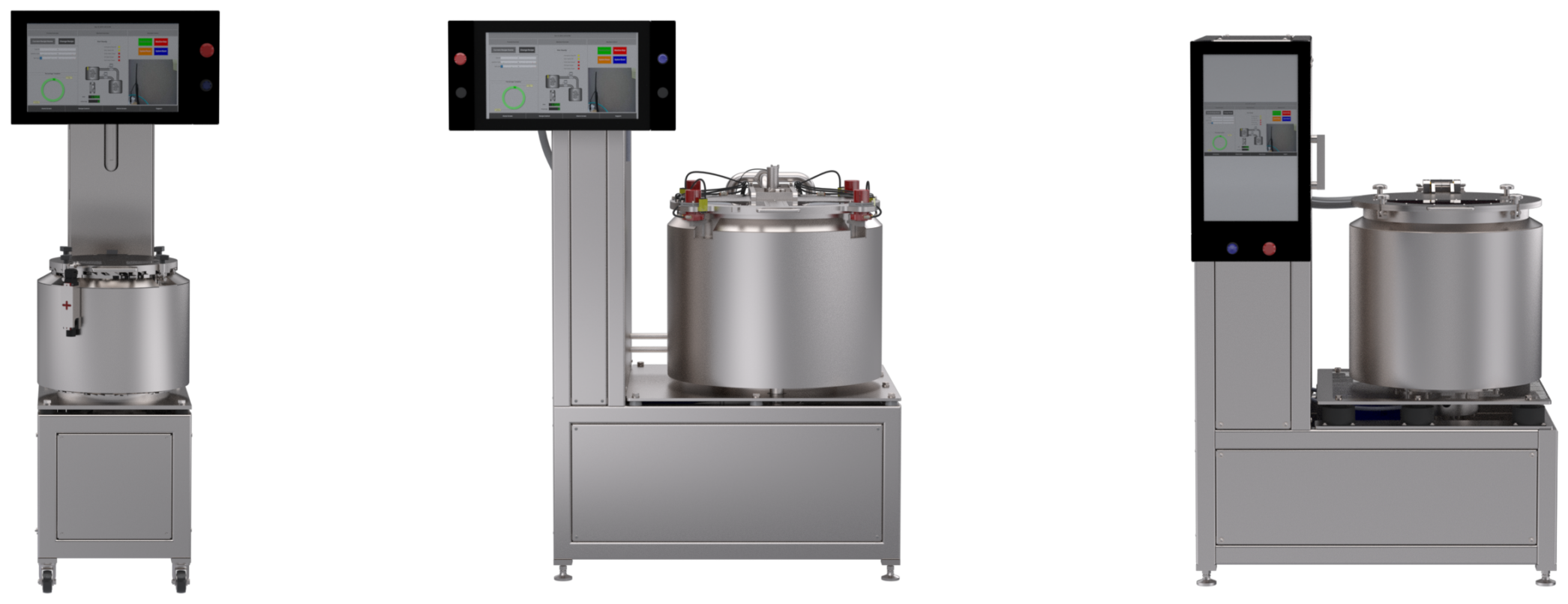

M-Series
Modular units, bought one at a time
Individual pieces of the ethanol line — solvent chilling, centrifuge extraction, automated solvent recovery and decarboxylation — specified separately, so a facility can scale into automation rather than buy all of it at once.
- MST/MDT · CES · ASR · DS
- 50–135 GPH chilling · 20–90 GPH recovery
- 2–55 lb per centrifuge batch
Published specifications
The numbers, before the conversation
Model designations and rated figures as published by MACH engineering. Final configuration is specified against your feedstock, solvent and room classification.
| Model | Series & configuration | Rated capacity | Cycle time |
|---|---|---|---|
| Ethanol extraction | |||
| EES-X-240 | EES · automated turnkey | 80 lb per shift · 240 lb per day | 10–15 min |
| EES-X-900 | EES · automated turnkey | 300 lb per shift · 900 lb per day | 14–18 min |
| EES-X-1800 | EES · automated turnkey | 600 lb per shift · 1800 lb per day | 14–20 min |
| EES-X-3600 | EES · automated turnkey | 1200 lb per shift · 3600 lb per day | 15–20 min |
| Hydrocarbon extraction | |||
| AHES-5 | AHES · automated closed-loop | 5 lb per batch | Recipe dependent |
| AHES-40 | AHES · automated closed-loop | 40 lb per batch | Recipe dependent |
| AHES-80 | AHES · automated closed-loop | 80 lb per batch | Recipe dependent |
| AHES-120 | AHES · automated closed-loop | 120 lb per batch | Recipe dependent |
| MHES | MHES · operator-driven closed-loop | Scaled to match AHES models | Operator dependent |
| Distillation | |||
| WFDS-1S | WFDS · single-stage wiped film | 0.15 / 0.30 / 0.40 m² surface | Continuous feed |
| WFDS-2S | WFDS · dual-stage wiped film | 0.30 / 0.40 / 0.60 m² surface | Continuous feed |
| TES-5 | TES · thermal | Up to 5 lb | 3–6 hr |
| TES-20 | TES · thermal | Up to 20 lb | 3–6 hr |
| Modular units — M-Series | |||
| MST / MDT | Solvent chilling | 50 / 75 / 135 GPH | Continuous |
| CES-80 → CES-1000 | Centrifuge extraction | 2–55 lb per batch | 8–20 min |
| ASR-20 → ASR-75 | Automated solvent recovery | 20–90 GPH | Continuous |
| DS-20 → DS-100100 | Decarboxylation, single & dual vessel | 20–100 L per vessel | Alternating vessels |
Capacity figures are as published by MACH engineering. EES-X per-shift and per-day capacities are stated as rated throughput. Specifications are subject to change; final figures are confirmed on the system quotation.
Why MACH
A manufacturer, not a reseller
-
Engineering expertise
Mechanical, chemical, electrical and process engineers in one team, with 40+ years of combined chemical, mechanical and controls experience behind the control system alone.
-
Commercial-scale systems
A product ladder that runs from a single modular unit to a fully automated turnkey line, so the first system you buy does not have to be the last one you can use.
-
Manufacturing quality
Vertically integrated in Michigan. We design, fabricate, assemble and test every system under one roof, which is why quality is a process control rather than a supplier promise.
-
Customization
Systems are specified against your throughput, solvent and room classification — including complete facility design where the process flow has to be engineered around the building.
-
Support & service
24/7 remote technical support through an onboard connection, global service coverage, and a dedicated spare-parts team that stocks for same-day shipment.
-
Built in the USA
Every system is manufactured, assembled and tested in our Michigan facility, and installed across the United States and internationally.
How a system gets built
From production target to running line
-
01
Discovery & goal setting
We define the short-term production target and the long-term scalability need before any equipment is named.
-
02
Process design
A tailored process flow engineered around your output goal, with Class I Division 1/2 compliance and automation designed in from the start.
-
03
Equipment specification
Every unit selected for performance, scalability and ease of use — extraction, distillation, separation and post-processing as one integrated specification.
-
04
In-house manufacture & QC
Fabricated, assembled and tested in our Michigan facility, so the system is proven before it ships.
-
05
On-site installation
MACH technicians work alongside your team and contractors on site prep and system installation.
-
06
Startup & operator training
Operation and safety, maintenance procedures, troubleshooting and process optimization — delivered to your operators, not just documented.
-
07
Long-term support
24/7 remote technical support, global service access and fast-shipping spare parts for the life of the system.
Request a quote
Tell us your throughput target.
Send the production requirement and we will come back with a system configuration and a quotation — not a brochure. An equipment specialist answers every inquiry.
- Phone
- 855.798.4661
- Manufacturing
- Michigan, USA
- Support
- 24/7 remote technical support
Having trouble with the form? Use this and we will pick it up the same way.
Speak with an equipment specialist
Bring your throughput target and your room classification. We will tell you what the system needs to be.
